Project Overview
A railway traction power-quality model using a STATCOM to compensate reactive power, voltage fluctuation, current imbalance and harmonic distortion.
The model is structured around reactive-current compensation, voltage regulation, harmonic mitigation and railway load balancing. It is suitable for scholars who need a clear implementation path, measurable outputs and a page that connects the video demonstration with the underlying engineering method.
System Architecture and Main Components
- Utility and traction transformer
- Single-phase or nonlinear traction load
- Voltage-source converter STATCOM
- DC-link capacitor
- Synchronous-reference-frame controller
- Power-quality measurement blocks
MATLAB / Simulation Methodology
- Model the traction supply and time-varying locomotive load.
- Measure point-of-common-coupling voltage and current.
- Extract compensation references for reactive and unbalanced current.
- Regulate the STATCOM DC link and generate converter gating pulses.
- Compare voltage profile, power factor and harmonic performance before and after compensation.
Control and Analysis Strategy
The central technical emphasis is reactive-current compensation, voltage regulation, harmonic mitigation and railway load balancing. Measurements are converted into controller or analysis variables, limits are applied to maintain realistic operation, and disturbances are introduced to evaluate stability, tracking quality, efficiency and transient performance.
The implementation can be extended with parameter optimization, artificial-intelligence control, comparative algorithms, hardware-in-the-loop preparation or publication-style performance indices, depending on the research objective.
Expected Simulation Outputs
- PCC voltage and traction current
- Reactive power and power factor
- STATCOM compensation current
- DC-link voltage
- Current THD and voltage-unbalance indicators
Video Summary and Simulation Transcript
The video begins with the complete STATCOM-Based Power Quality Improvement in Railway Traction Systems model and identifies the principal subsystems: Utility and traction transformer, Single-phase or nonlinear traction load, Voltage-source converter STATCOM, DC-link capacitor.
It then explains the signal flow and demonstrates reactive-current compensation, voltage regulation, harmonic mitigation and railway load balancing. Reference commands and operating conditions are applied so that the controller, converter or physical model can be observed during steady-state and transient operation.

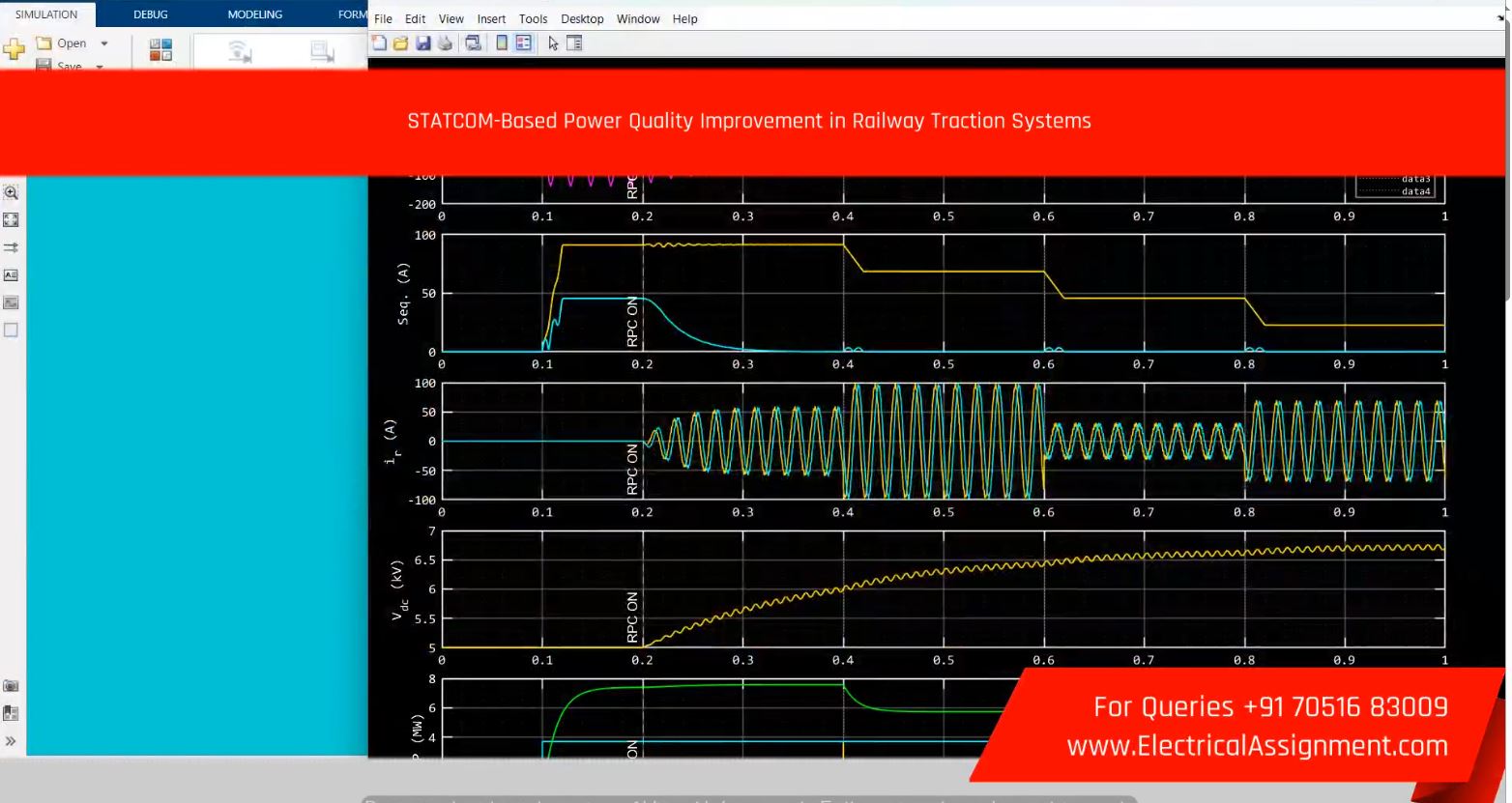

The final scopes focus on pcc voltage and traction current, reactive power and power factor, statcom compensation current, dc-link voltage. These plots support result discussion, controller comparison, report preparation and further PhD or FYP development.
Research Applications and Possible Extensions
- Railway electrification research
- Power-quality compensation
- STATCOM controller development
- Traction-system thesis projects
- Controller or algorithm comparison using identical operating scenarios
- Parameter sensitivity, optimization and publication-style result analysis
Related Simulation Projects
Project Content Note
The page describes a representative project workflow. The exact model, parameters, controller and results may vary according to the selected research paper or university requirement.
