ANN-Based DFIG Wind Energy System - MATLAB Simulink Simulation

Video Demonstration

Simulation Images and Output Snapshots

Project Overview

A grid-connected DFIG wind-energy model using an artificial neural network to improve nonlinear power, speed or converter-control performance.

The model is structured around ANN learning, nonlinear DFIG dynamics, converter control and renewable power tracking. It is suitable for scholars who need a clear implementation path, measurable outputs and a page that connects the video demonstration with the underlying engineering method.

System Architecture and Main Components

• Wind turbine and DFIG model
• Rotor-side and grid-side converters
• DC-link subsystem
• Reference-generation block
• ANN controller
• Grid synchronization and measurement blocks

MATLAB / Simulation Methodology

1. Generate training data from representative wind and grid operating points.
2. Select ANN inputs and target control variables.
3. Train and validate the neural network offline.
4. Deploy the trained ANN within the DFIG control loop.
5. Apply wind-speed, load and grid-voltage changes and compare with conventional control.

Control and Analysis Strategy

The central technical emphasis is ANN learning, nonlinear DFIG dynamics, converter control and renewable power tracking. Measurements are converted into controller or analysis variables, limits are applied to maintain realistic operation, and disturbances are introduced to evaluate stability, tracking quality, efficiency and transient performance.

The implementation can be extended with parameter optimization, artificial-intelligence control, comparative algorithms, hardware-in-the-loop preparation or publication-style performance indices, depending on the research objective.

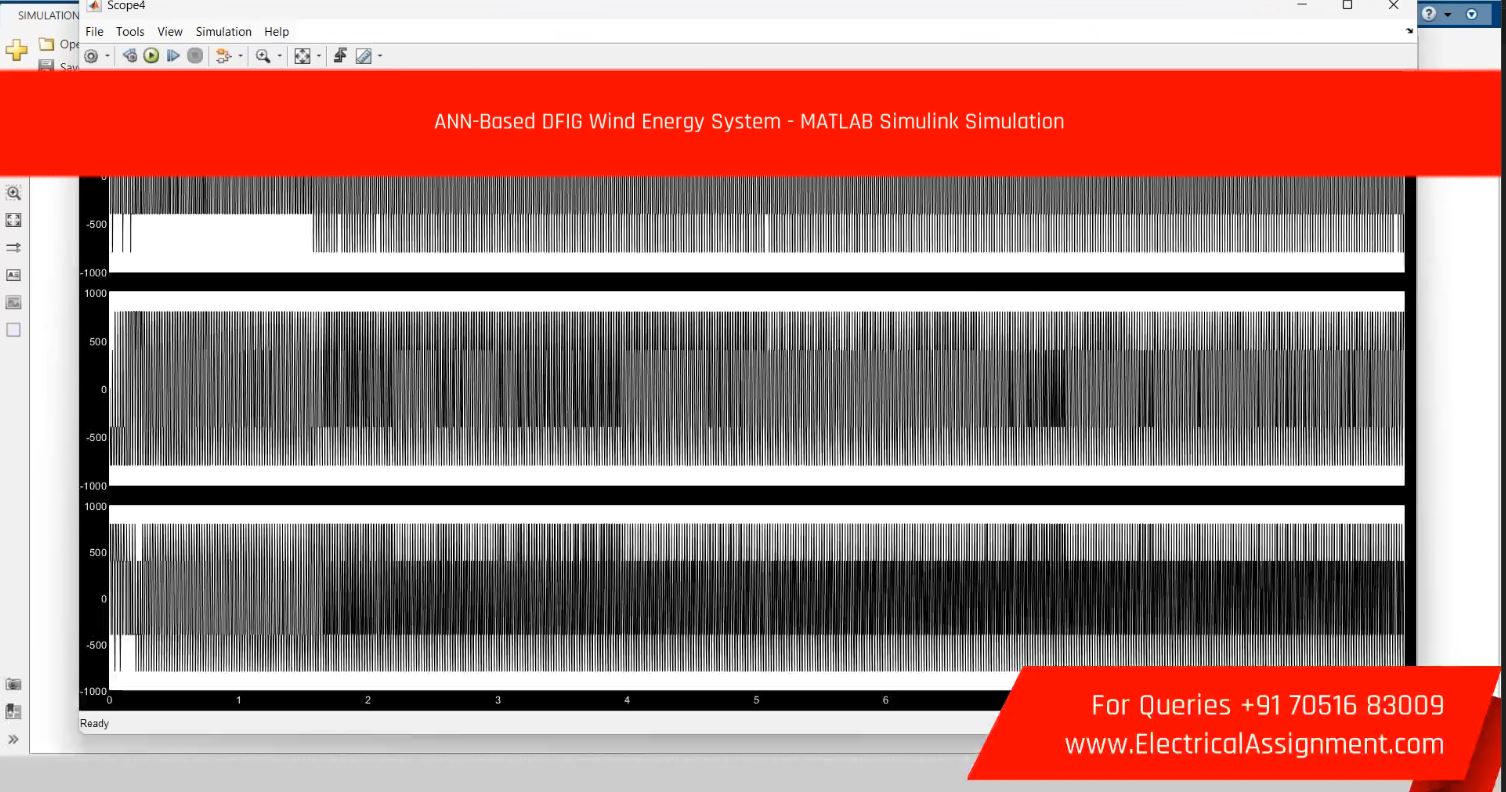

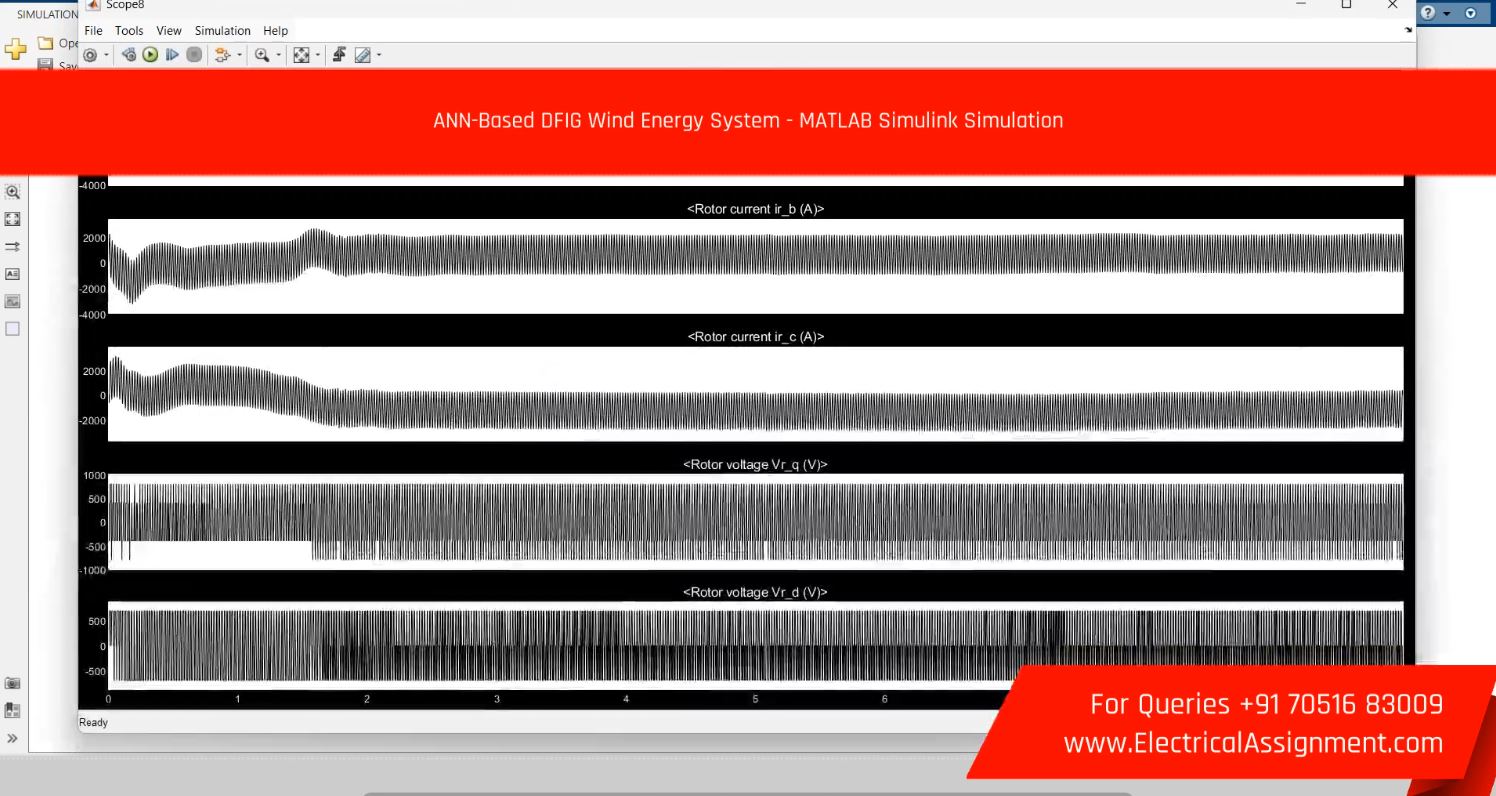

Expected Simulation Outputs

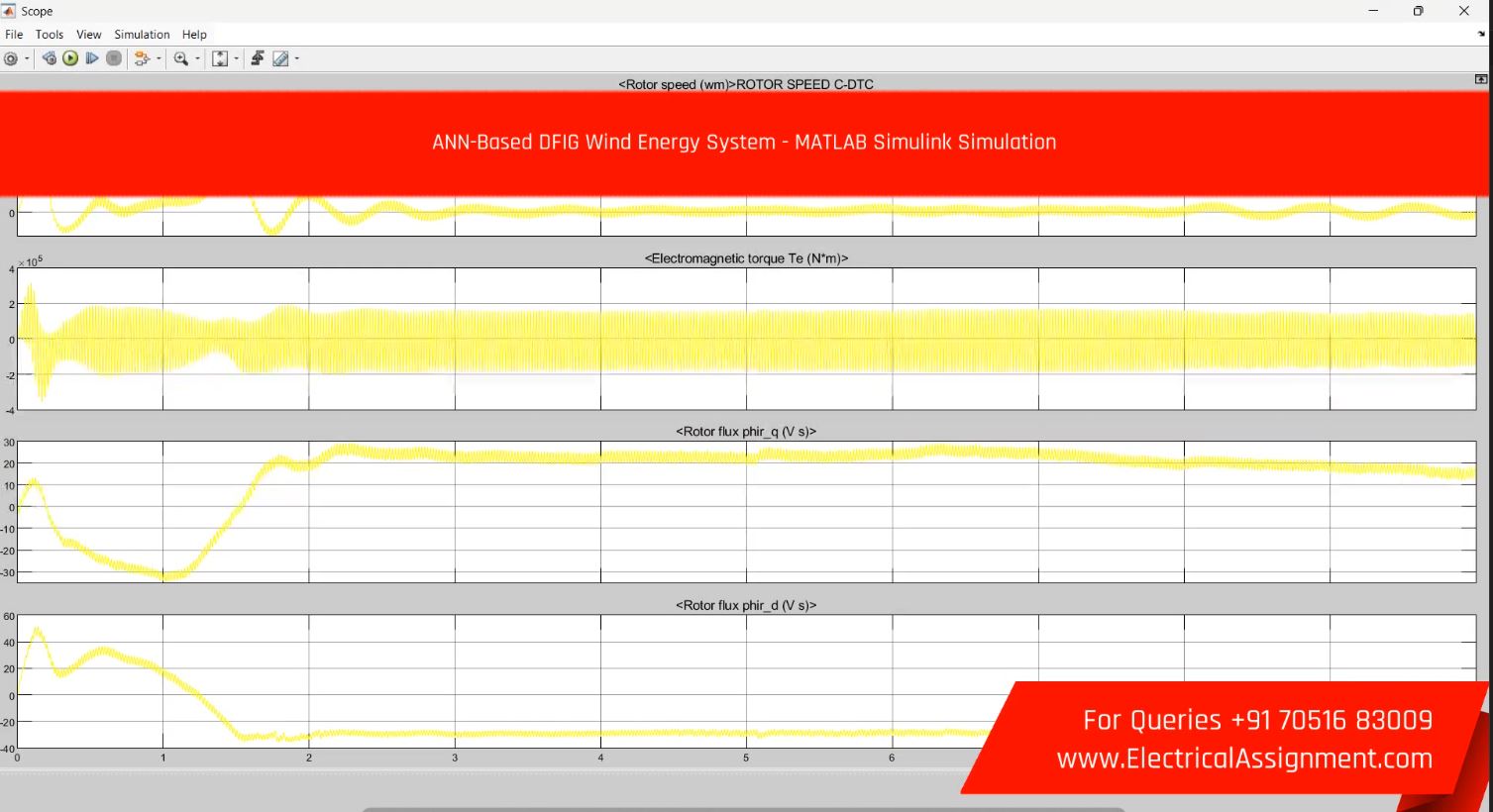

• Wind-turbine speed and torque
• DFIG active and reactive power
• ANN reference and predicted control output
• DC-link voltage

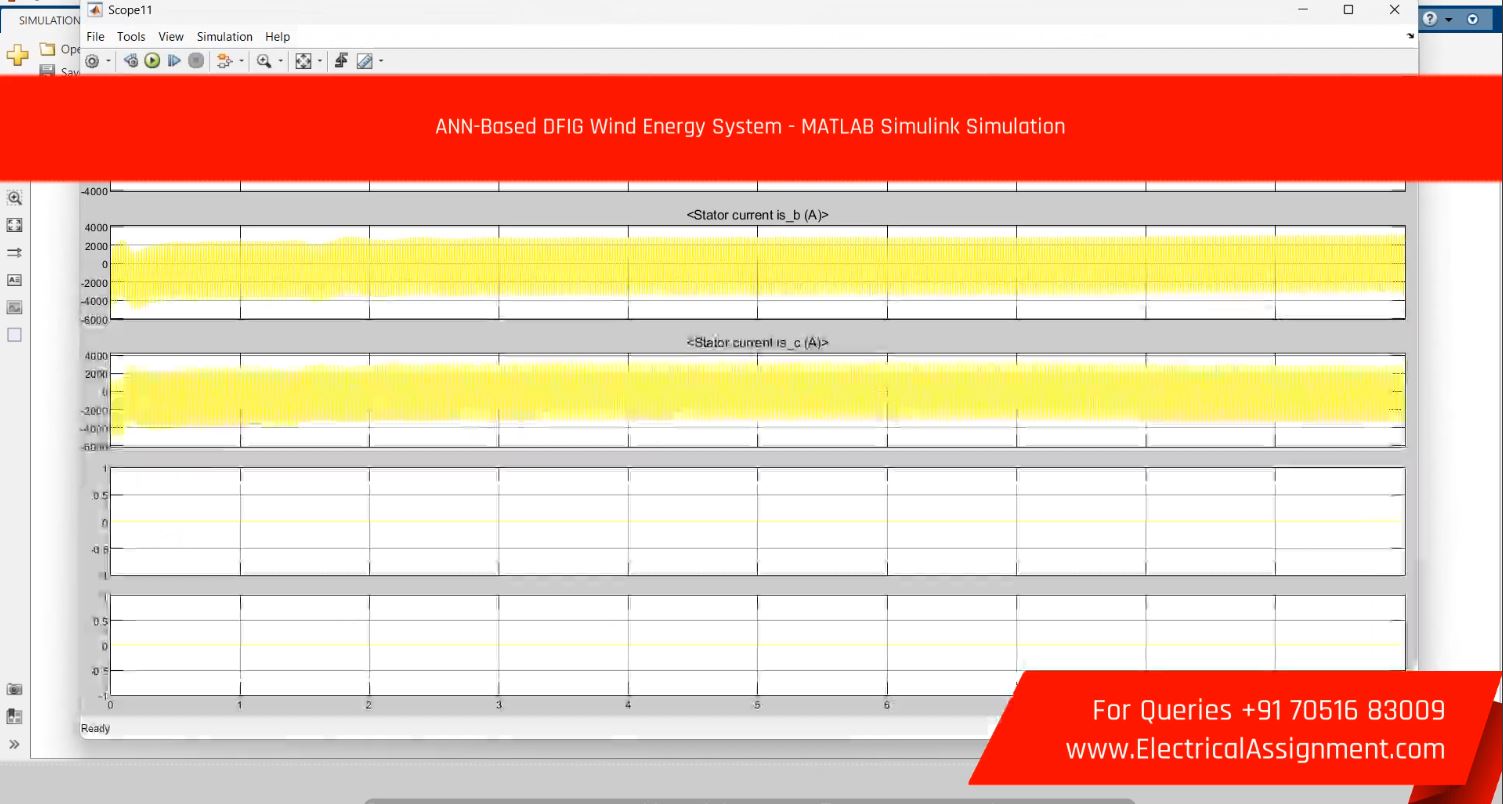

• Grid current and transient-response comparison

Video Summary and Simulation Transcript

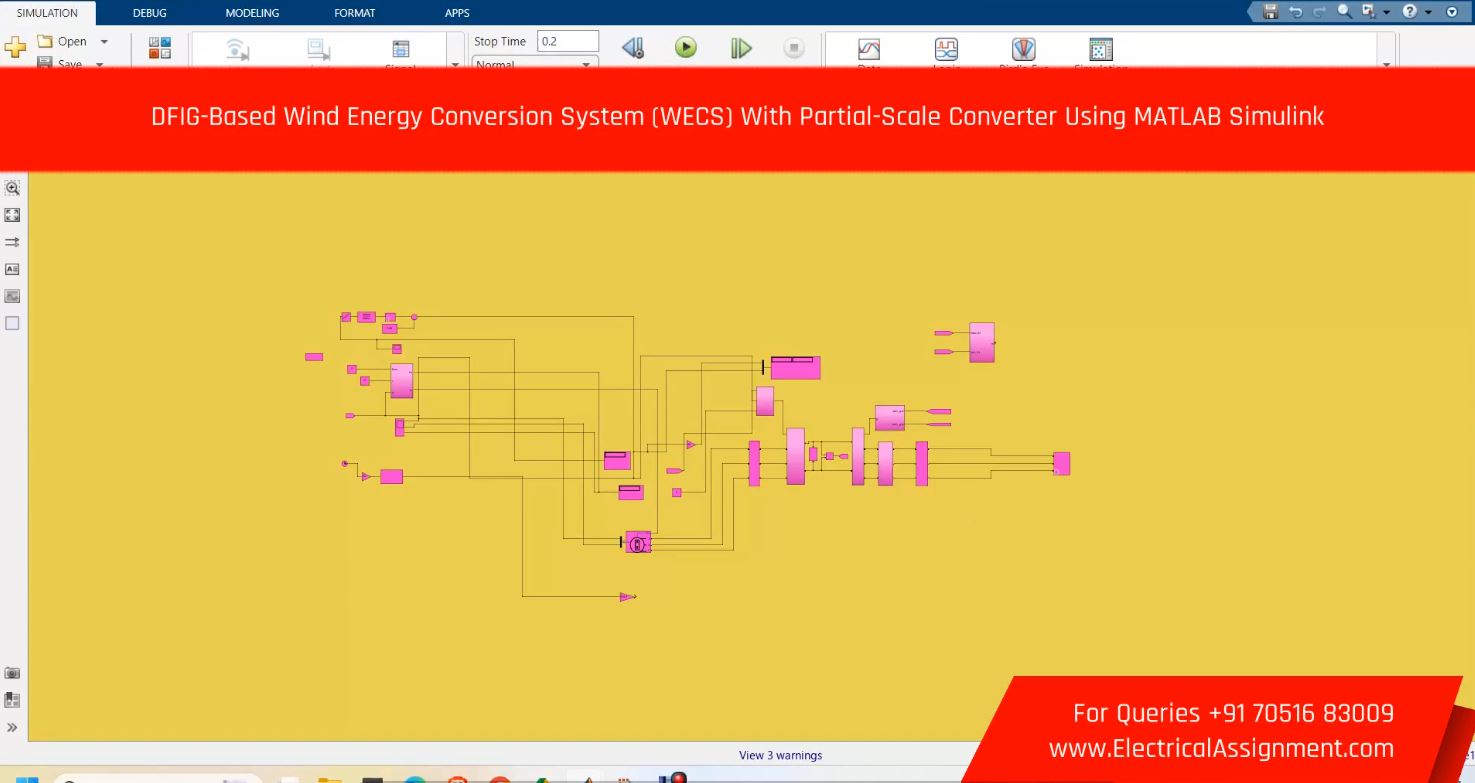

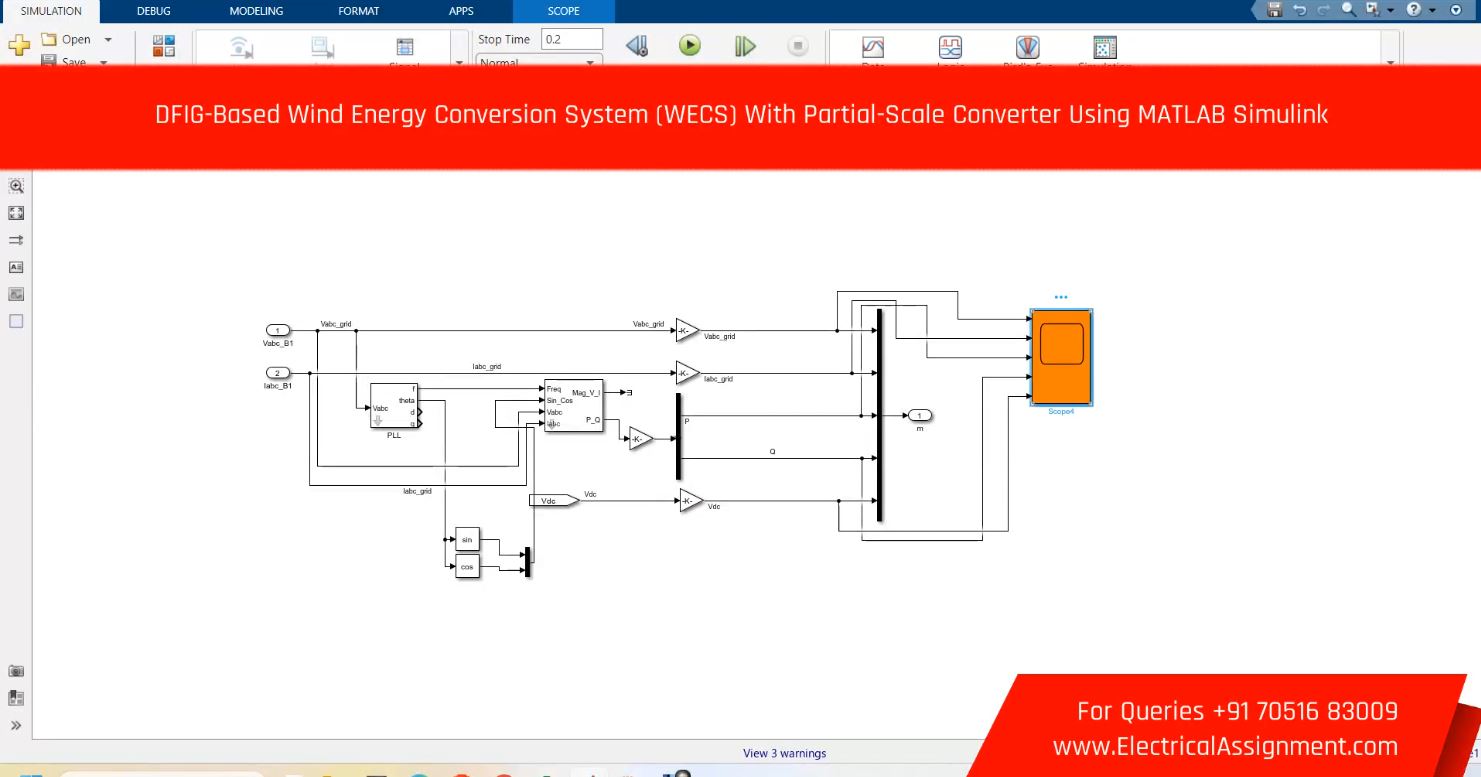

The video begins with the complete ANN-Based DFIG Wind Energy System - MATLAB Simulink Simulation model and identifies the principal subsystems: Wind turbine and DFIG model, Rotor-side and grid-side converters, DC-link subsystem, Reference-generation block.

It then explains the signal flow and demonstrates ANN learning, nonlinear DFIG dynamics, converter control and renewable power tracking. Reference commands and operating conditions are applied so that the controller, converter or physical model can be observed during steady-state and transient operation.

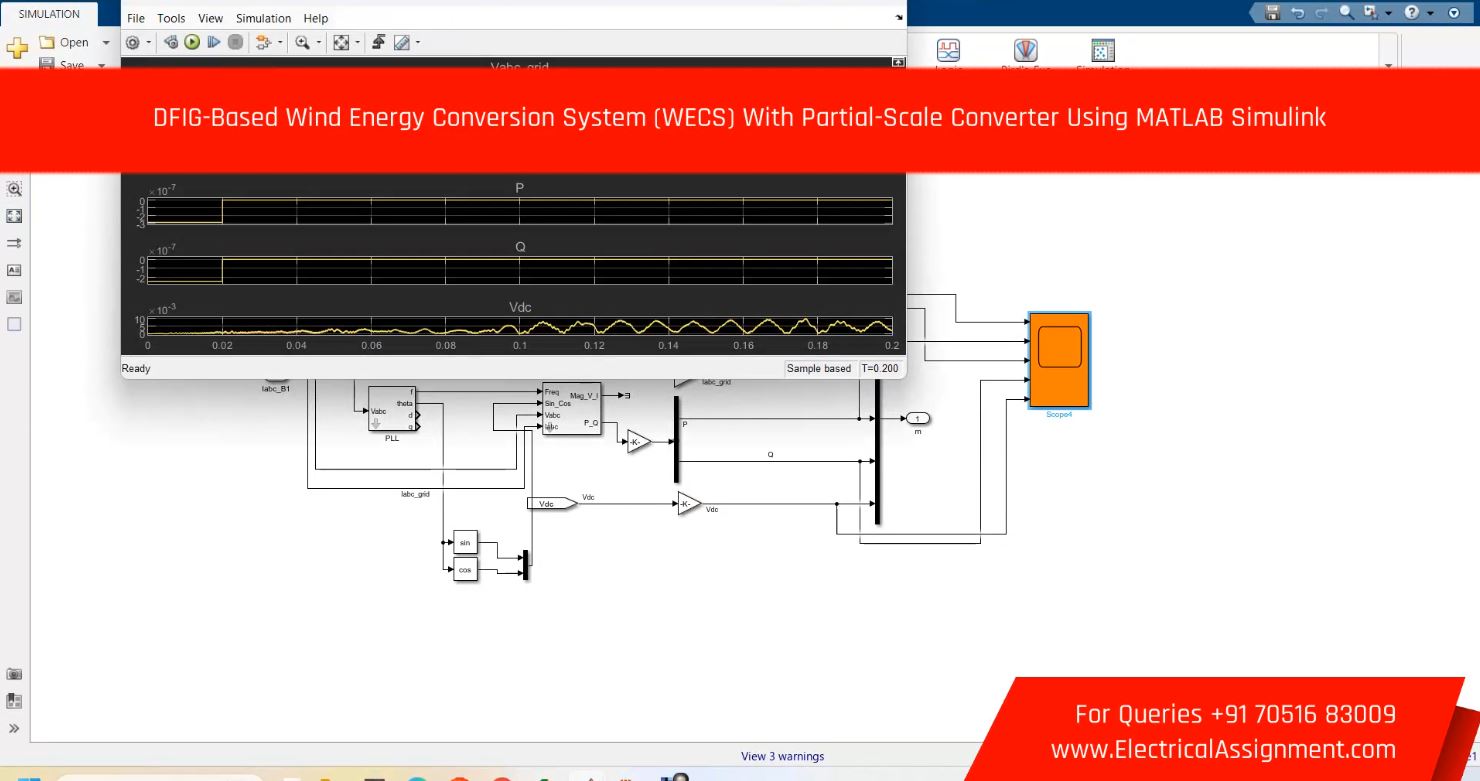

The final scopes focus on wind-turbine speed and torque, dfig active and reactive power, ann reference and predicted control output, dc-link voltage. These plots support result discussion, controller comparison, report preparation and further PhD or FYP development.

Research Applications and Possible Extensions

• AI-based wind-converter control
• Adaptive renewable-energy systems
• ANN versus PI comparison
• Wind-energy PhD research
• Controller or algorithm comparison using identical operating scenarios
• Parameter sensitivity, optimization and publication-style result analysis
