Project Overview
A DFIG wind energy conversion model using direct active and reactive power control for grid-connected operation under variable wind conditions.
The model is structured around direct active-reactive power control, converter coordination and variable-speed wind energy conversion. It is suitable for scholars who need a clear implementation path, measurable outputs and a page that connects the video demonstration with the underlying engineering method.
System Architecture and Main Components
- Wind turbine aerodynamic model
- Doubly fed induction generator
- Rotor-side converter
- Grid-side converter
- DC-link capacitor
- Grid measurement and control blocks
MATLAB / Simulation Methodology
- Define turbine, generator and grid parameters.
- Measure stator power, rotor currents and DC-link voltage.
- Generate direct-control switching commands for the rotor-side converter.
- Regulate the grid-side converter to maintain DC-link voltage.
- Apply wind-speed and grid-condition variations and record the dynamic response.
Control and Analysis Strategy
The central technical emphasis is direct active-reactive power control, converter coordination and variable-speed wind energy conversion. Measurements are converted into controller or analysis variables, limits are applied to maintain realistic operation, and disturbances are introduced to evaluate stability, tracking quality, efficiency and transient performance.
The implementation can be extended with parameter optimization, artificial-intelligence control, comparative algorithms, hardware-in-the-loop preparation or publication-style performance indices, depending on the research objective.
Expected Simulation Outputs
- Rotor speed and electromagnetic torque
- Stator active and reactive power
- Rotor current and converter switching response
- DC-link voltage
- Grid voltage and current waveforms
Video Summary and Simulation Transcript

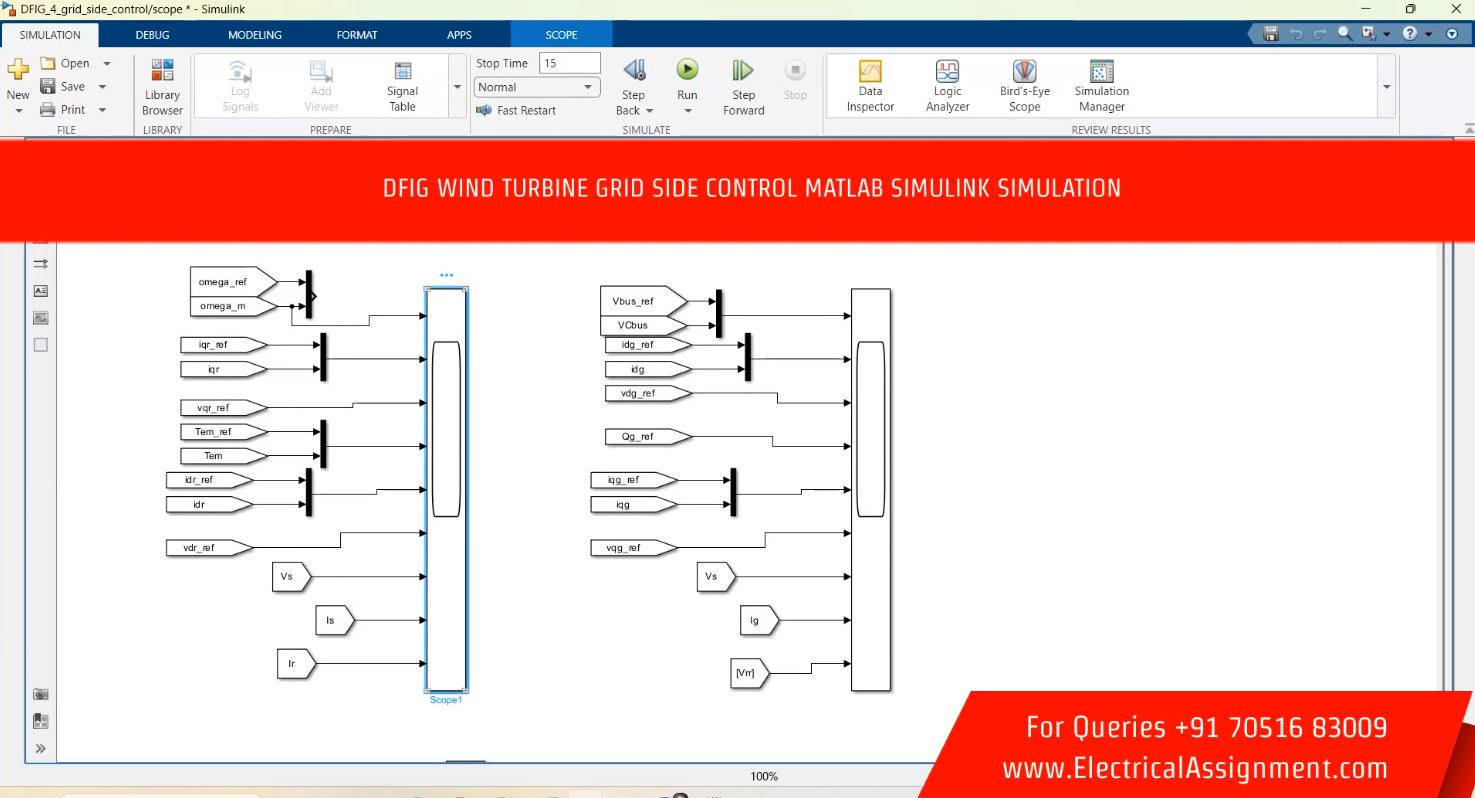

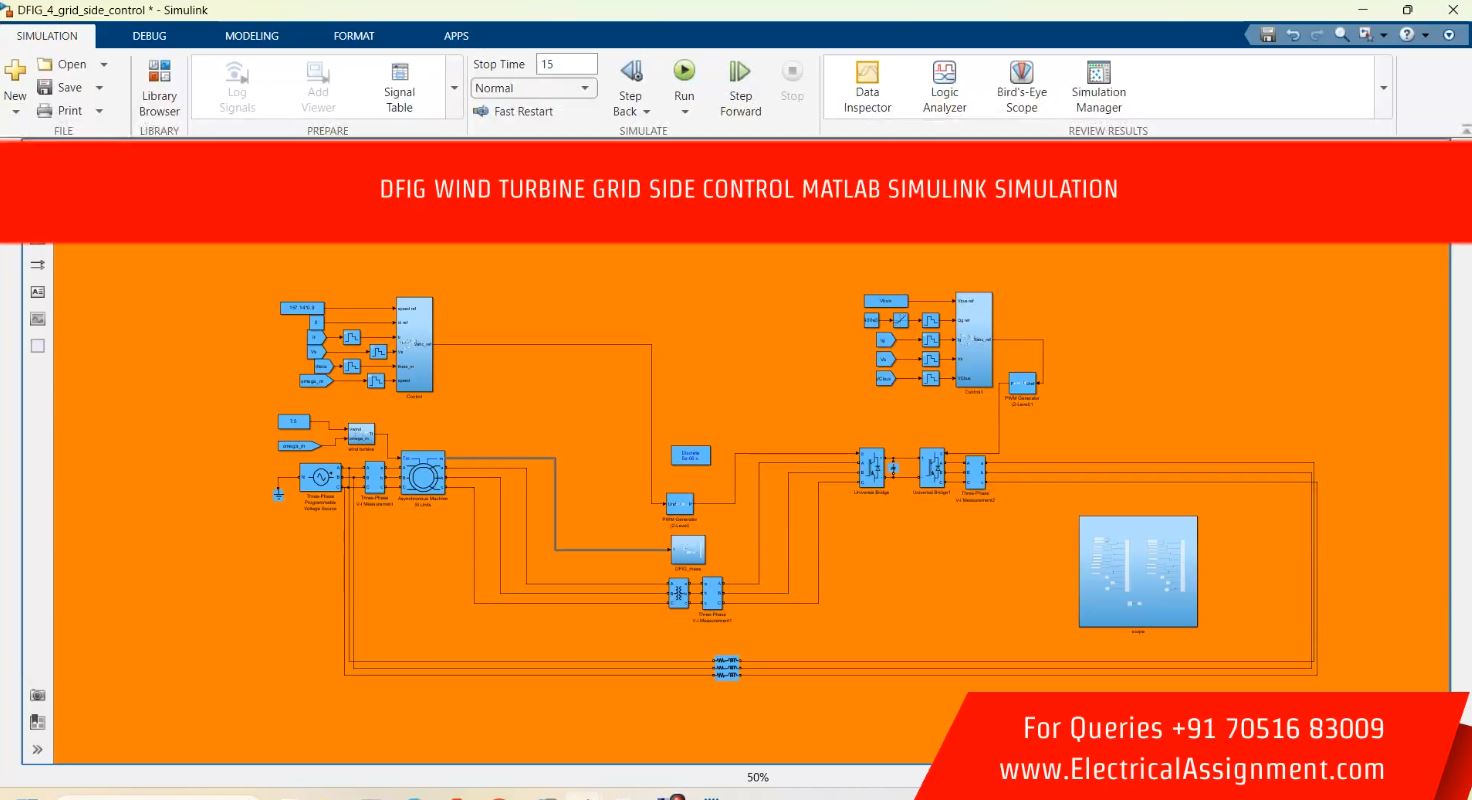

The video begins with the complete DFIG Wind Turbine Direct Control Strategy - MATLAB Simulink model and identifies the principal subsystems: Wind turbine aerodynamic model, Doubly fed induction generator, Rotor-side converter, Grid-side converter.
It then explains the signal flow and demonstrates direct active-reactive power control, converter coordination and variable-speed wind energy conversion. Reference commands and operating conditions are applied so that the controller, converter or physical model can be observed during steady-state and transient operation.

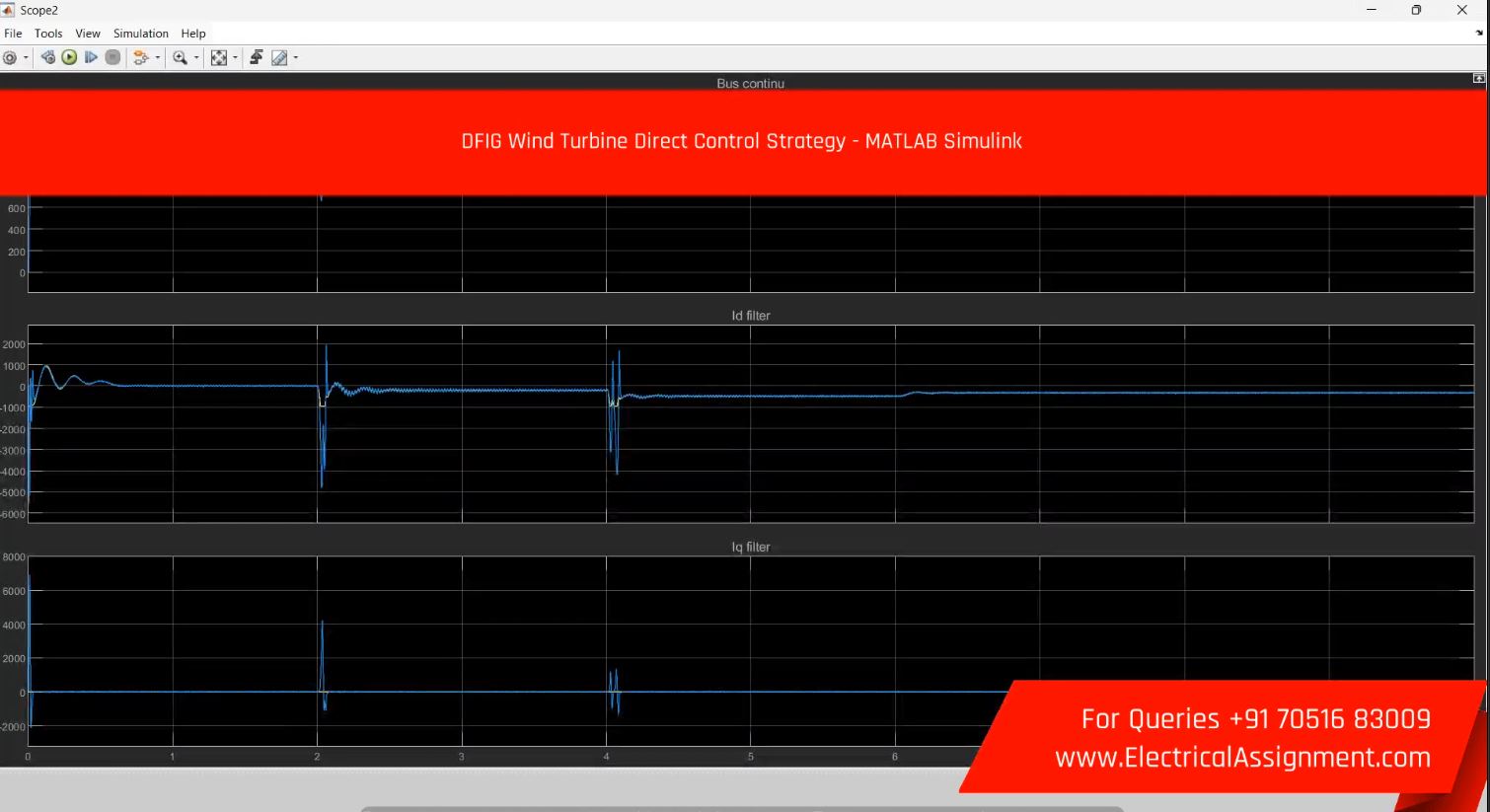

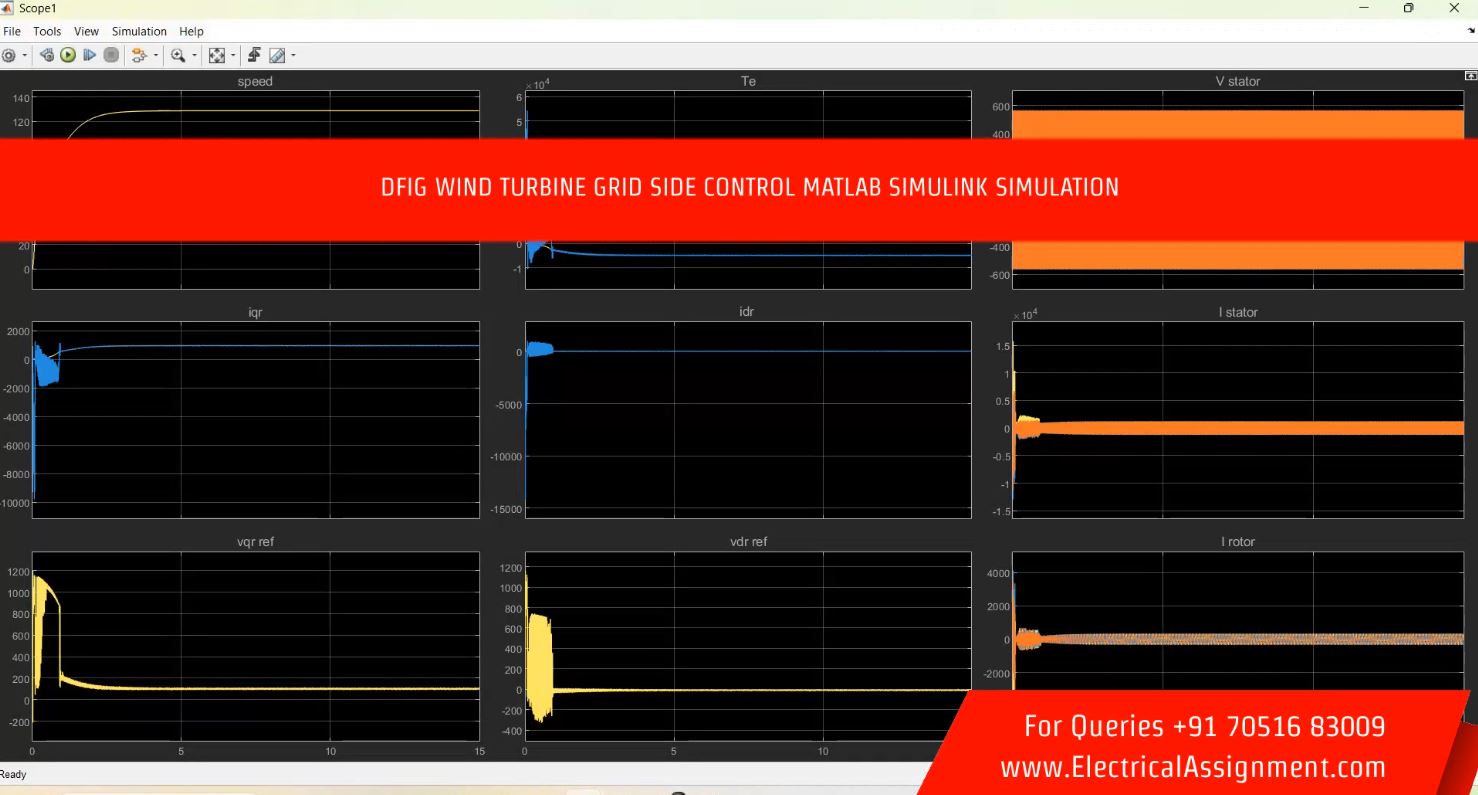

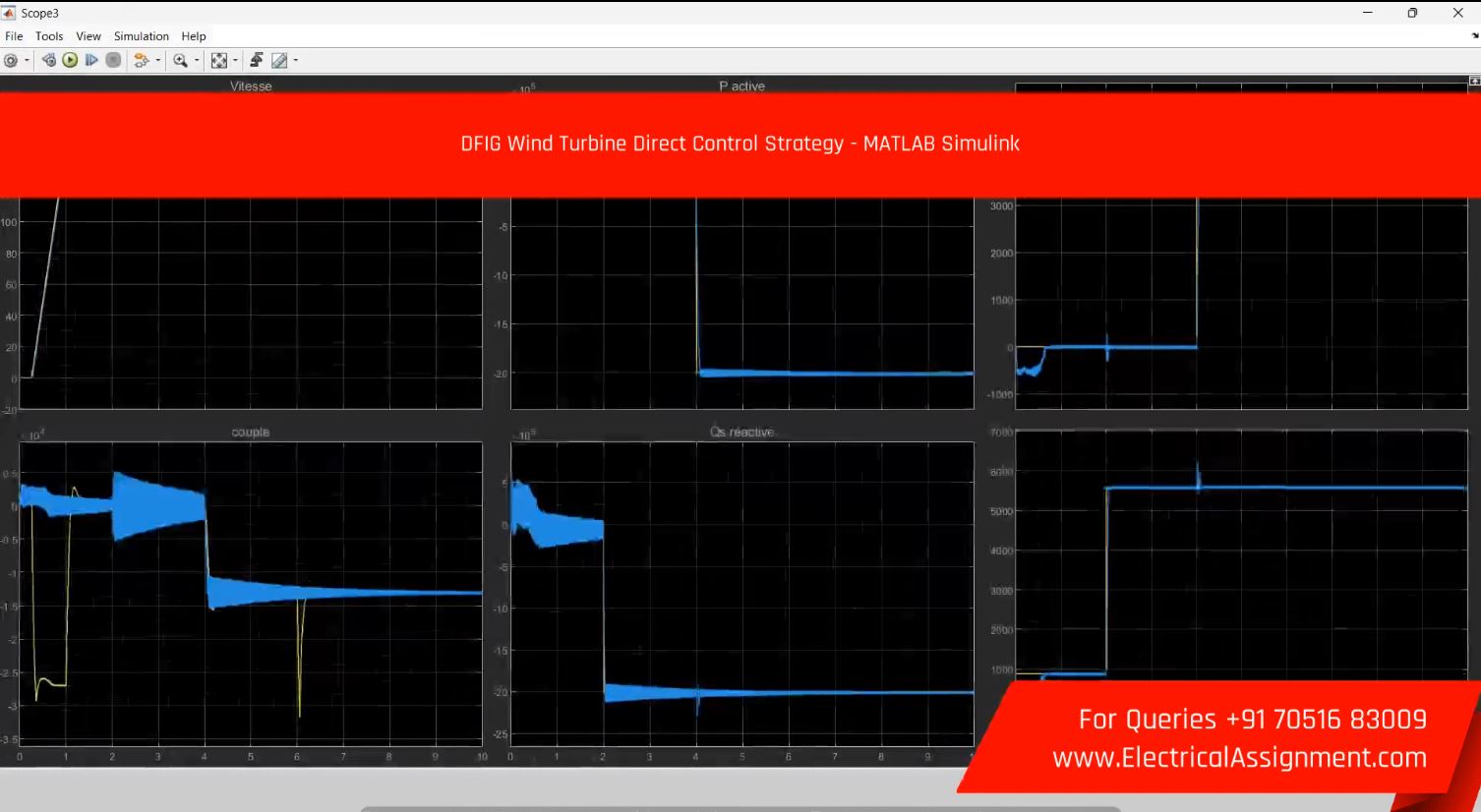

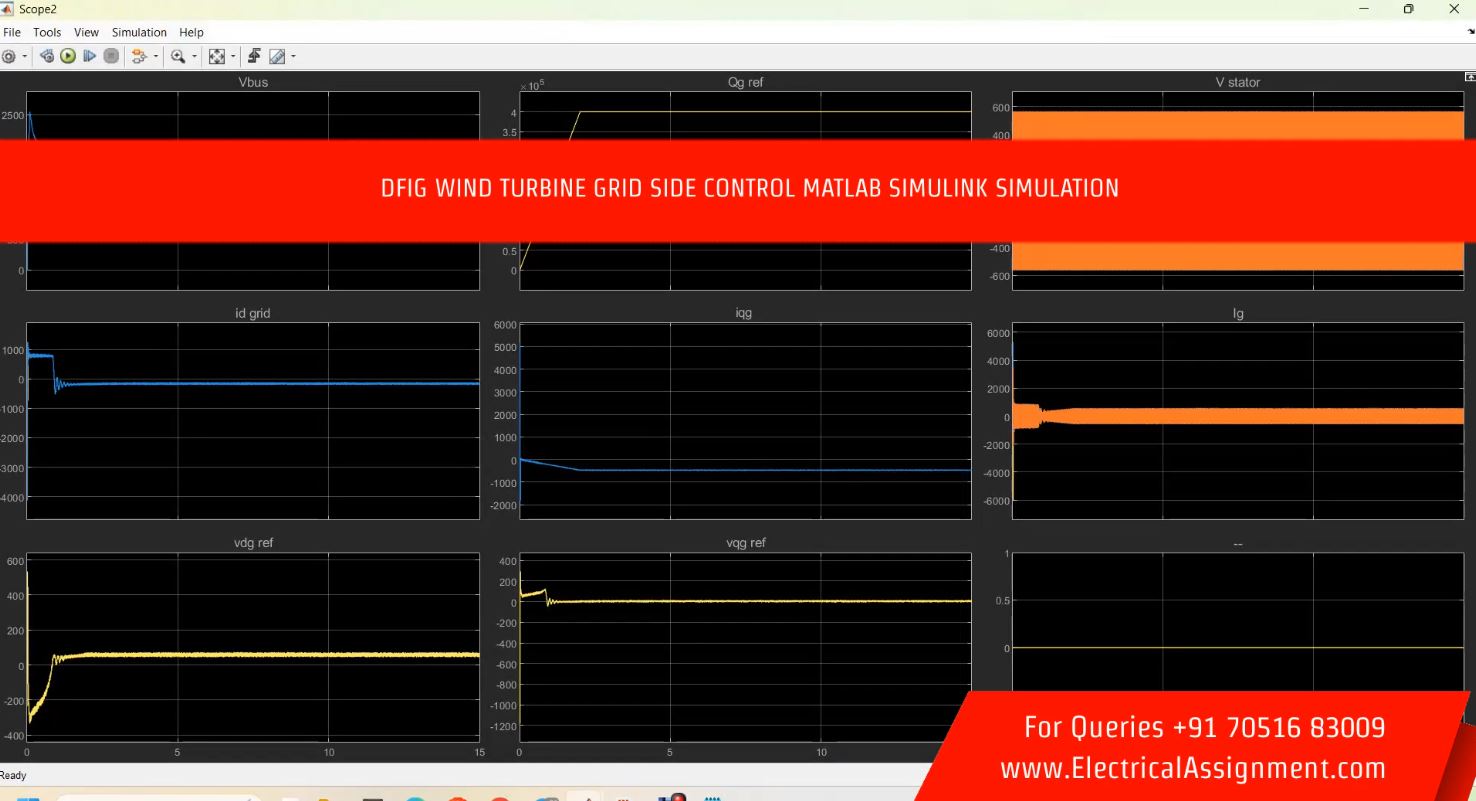

The final scopes focus on rotor speed and electromagnetic torque, stator active and reactive power, rotor current and converter switching response, dc-link voltage. These plots support result discussion, controller comparison, report preparation and further PhD or FYP development.
Research Applications and Possible Extensions
- Wind farm control research
- Renewable-grid integration studies
- Converter-control comparison
- PhD and final-year wind energy projects
- Controller or algorithm comparison using identical operating scenarios
- Parameter sensitivity, optimization and publication-style result analysis
Related Simulation Projects
Project Content Note
The page describes a representative project workflow. The exact model, parameters, controller and results may vary according to the selected research paper or university requirement.
